Model X156

Linear Inductive Valve Position Transmitter

KEY FEATURES

  • The stainless steel actuator stem is pinned directly to the main valve stem
  • Stems on main valves larger than 2 1/2 in / 65 mm are pre-drilled for easy installation
  • Separate stem cap permits easy field installation
  • Combination water-tight rated enclosure to NEMA 4X and NEMA 6

How May We Assist You?

*
*
*
*

  1. PRODUCT OVERVIEW

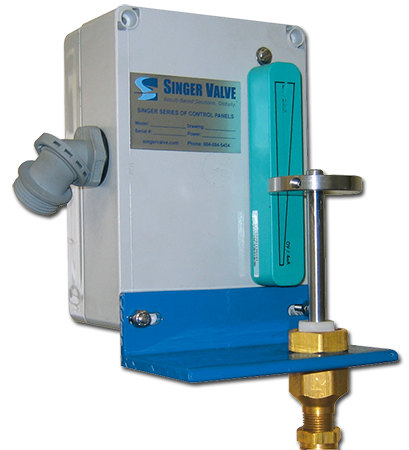

    X156 Linear Inductive Valve Position Transmitter

    The X156 Linear Inductive Valve Position Transmitter electronically indicates the position of the valve and is ideal for applications where precision and accuracy is required. It is mounted directly to the main valve stem and uses an external source of 24VDC power, a 4 to 20mA signal proportional to valve stroke is generated and transmitted. The zero and span are fully adjustable over the complete range of stroke.

  2. DOWNLOADS

    X156 Linear Inductive Valve Position Transmitter

    For more information on the X156 main options valve:

    X156-Product-Pages
